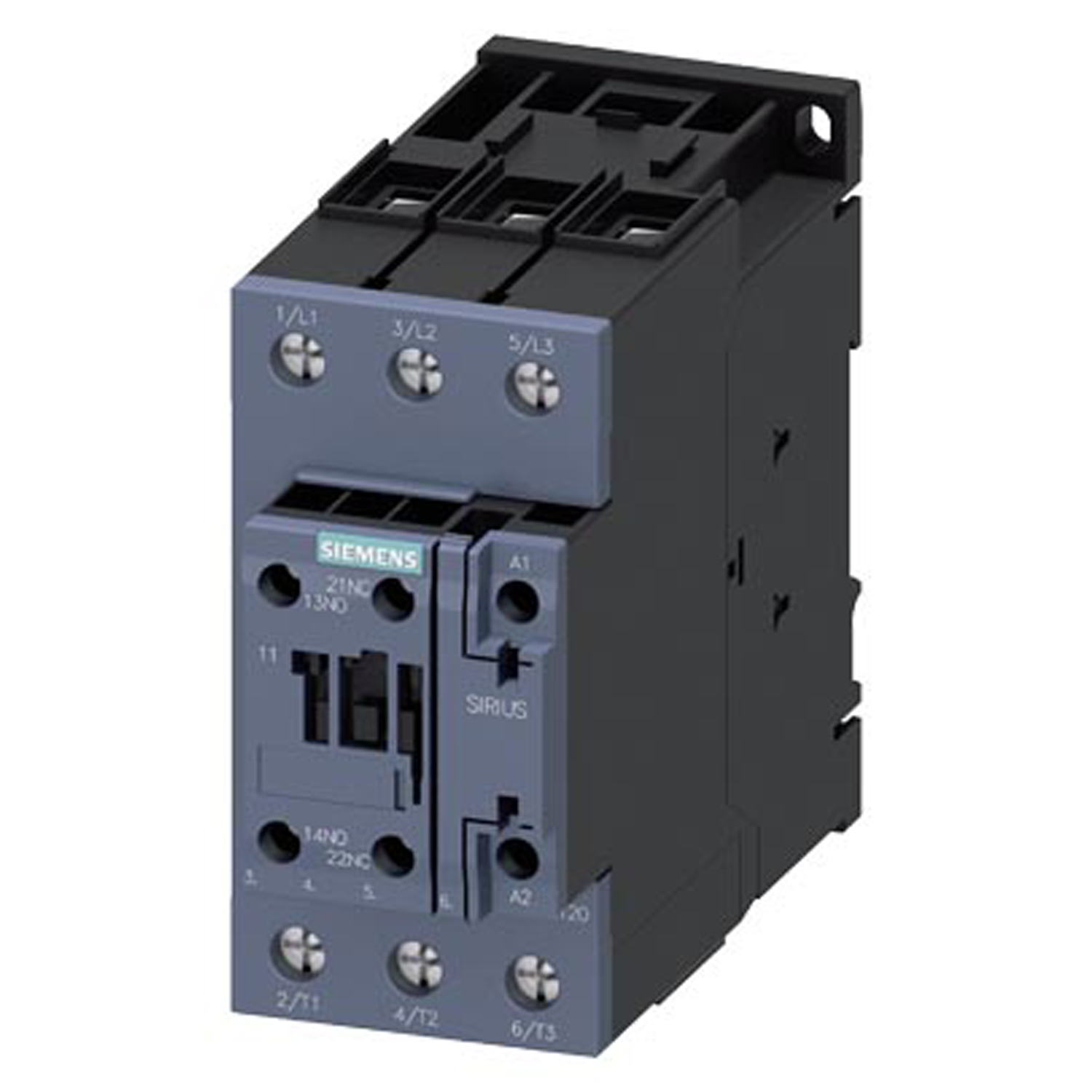

Power Contactor AC-3 50 A, 22 kW / 400 V 1 NO + 1 NC, AC / DC 20-33 V, with varistor, 3-pole

Siemens

Item ID: 3RT20361NB30

power contactor, AC-3 50 A, 22 kW / 400 V 1 NO + 1 NC, AC / DC 20-33 V, with varistor, 3-pole, Size S2, screw terminal

Depth (In.)	130
Application area	For Switching Motors
Required spacing / with side-by-side mounting / upwards	10
Protection against electrical shock	finger-safe when touched vertically from front acc. to IEC 60529
Width (In)	55
Installation altitude / at height above sea level / maximum	2000
Required spacing / for live parts / forwards	10
Required spacing / for grounded parts / upwards	10
Ambient operating temp min/max	-25/60
Type of voltage for the control supply voltage	AC/DC
Required spacing / with side-by-side mounting / at the side	0
Required spacing / for grounded parts / downwards	10
Required spacing / for grounded parts / forwards	10
Product type designation	3RT2 - Power contactor
Required spacing / with side-by-side mounting / forwards	10
Product brand name	SIRIUS
Ambient storage temp min/max	-55
Required spacing / for live parts / at the side	6
Brand	Siemens
Country of Origin	GERMANY
Mounting Option	screw and snap-on mounting onto 35 mm standard mounting rail according to DIN EN 60715
Number of Poles	3
UPC	887621916664
