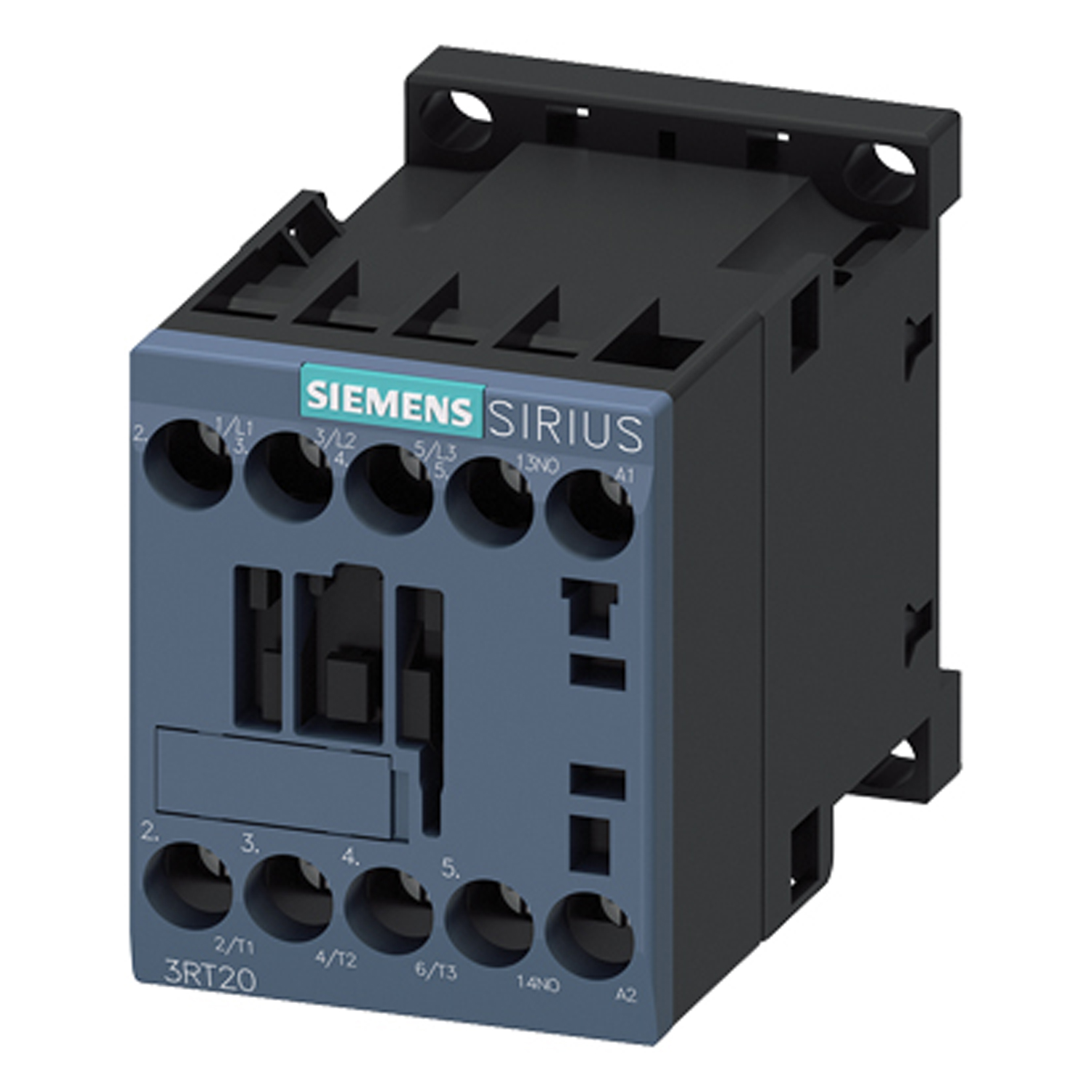

Power Contactor AC-3 7 A, 3 kW / 400 V 1 NO, 110 V AC, 50 Hz 120 V, 60 Hz, 3-pole

Siemens

Item ID: 3RT20151AK61

Power contactor, AC-3 7 A, 3 kW / 400 V 1 NO, 110 V AC, 50 Hz 120 V, 60 Hz, 3-pole, Size S00, screw terminal

Depth (In.)	73
Application area	For Switching Motors
Required spacing / with side-by-side mounting / upwards	10
Protection against electrical shock	finger-safe
Width (In)	45
Installation altitude / at height above sea level / maximum	2000
Required spacing / for live parts / forwards	10
Required spacing / for grounded parts / upwards	10
Ambient operating temp min/max	-25/60
Type of voltage for the control supply voltage	AC
Required spacing / with side-by-side mounting / at the side	0
Required spacing / for grounded parts / downwards	10
Required spacing / for grounded parts / forwards	10
Product type designation	3RT2 - Power contactor
Required spacing / with side-by-side mounting / forwards	10
Product brand name	SIRIUS
Ambient storage temp min/max	-55
Required spacing / for live parts / at the side	6
Brand	Siemens
Country of Origin	GERMANY
Mounting Option	screw and snap-on mounting onto 35 mm standard mounting rail according to DIN EN 60715
Number of Poles	3
UPC	662643908817
