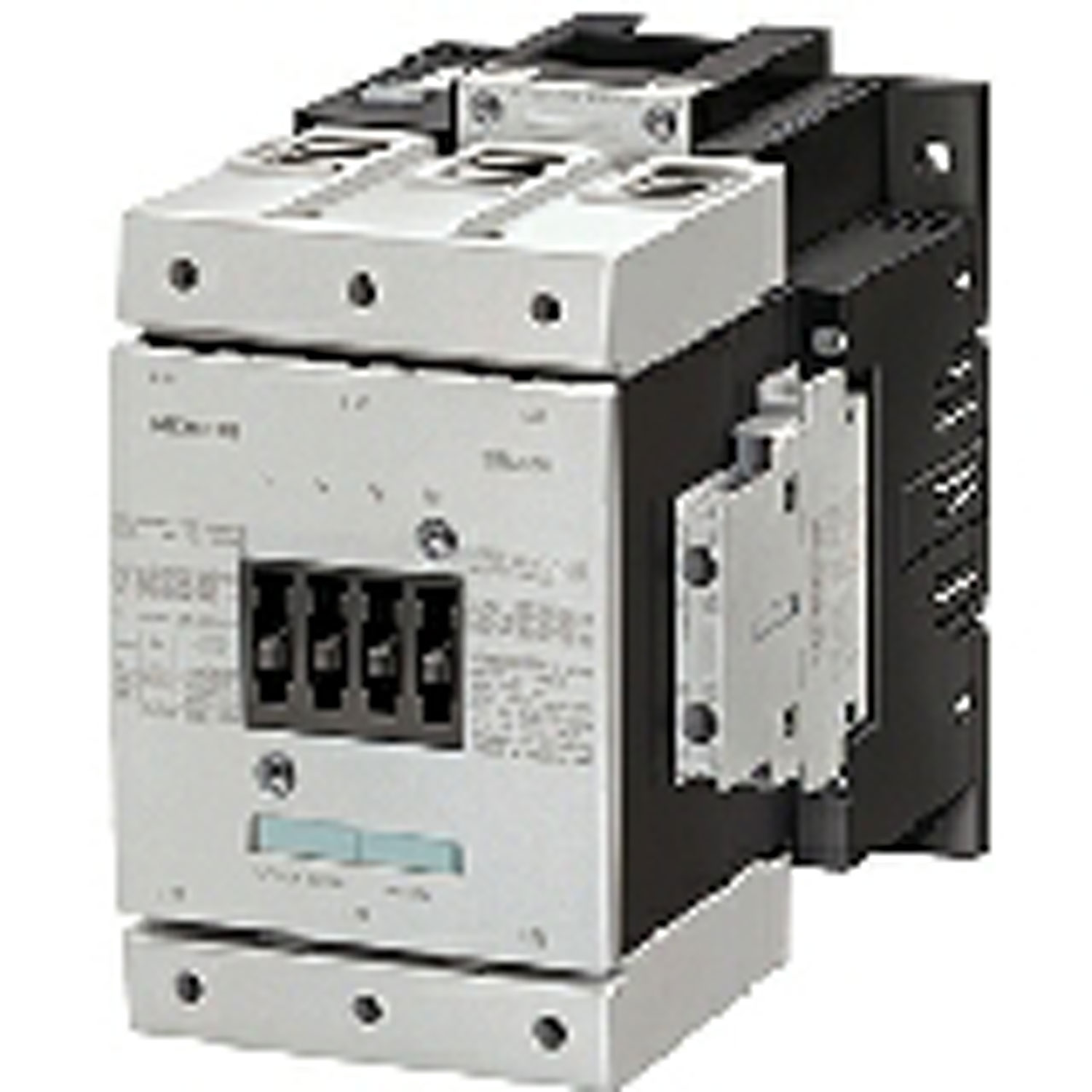

Power Contactor AC-3 185 A, 90 kW / 400 V AC (50-60 Hz)

Siemens

Item ID: 3RT10566AF36

Power contactor, AC-3 185 A, 90 kW / 400 V AC (50-60 Hz) / DC operation 110-127 V UC Auxiliary contacts 2 NO + 2 NC 3-pole, Size S6 Busbar connections Drive: conventional screw terminal

Item Specifications

Depth (In.)	170
Application area	For Switching Motors
Required spacing / with side-by-side mounting / upwards	10
Protection against electrical shock	finger-safe when touched vertically from front acc. to IEC 60529
Width (In)	120
Control supply voltage @ AC 60 Hz min/max	110/127
Installation altitude / at height above sea level / maximum	2000
Required spacing / for live parts / forwards	20
Required spacing / for grounded parts / upwards	10
Ambient operating temp min/max	-25/60
Type of voltage for the control supply voltage	AC/DC
Required spacing / with side-by-side mounting / at the side	0
Required spacing / for grounded parts / downwards	10
Required spacing / for grounded parts / forwards	20
Product type designation	3RT1 - Power contactor
Control supply voltage @ AC 50 Hz min/max	110/127
Required spacing / with side-by-side mounting / forwards	20
Product brand name	SIRIUS
Ambient storage temp min/max	-55
Required spacing / for live parts / at the side	10
Control supply voltage @ DC min/max	110/127
Brand	Siemens
Country of Origin	GERMANY
Mounting Option	screw fixing
Number of Poles	3
UPC	754554766300
